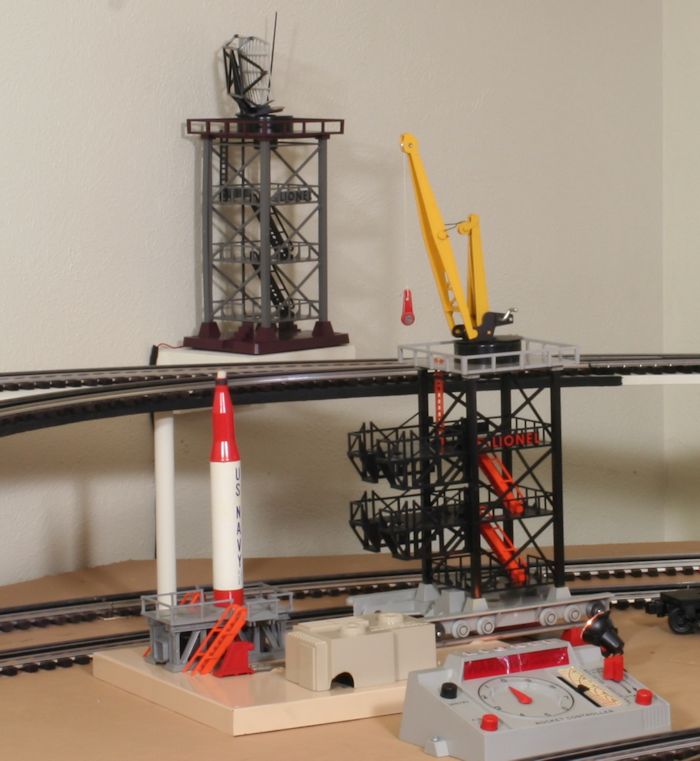

175 Rocket Launcher



175 Rocket Launcher



 Launching Mechanism without Launching Pad

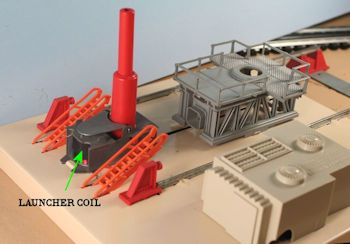

Launcher no Pad  Launcher w Coil

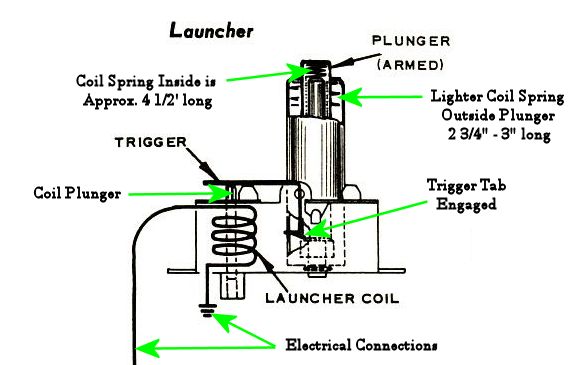

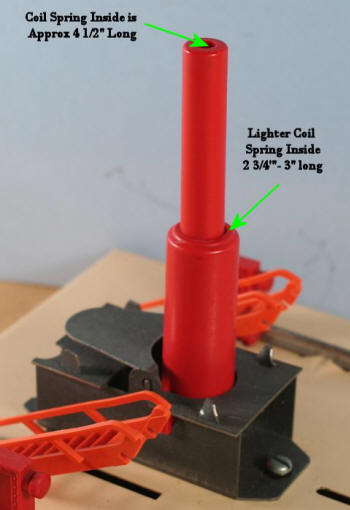

Launcher Springs  The springs inside the red tubes are speculation.
The metal tabs holding the base plate have not been straightened
for inspection of inside the 2 red tubes.

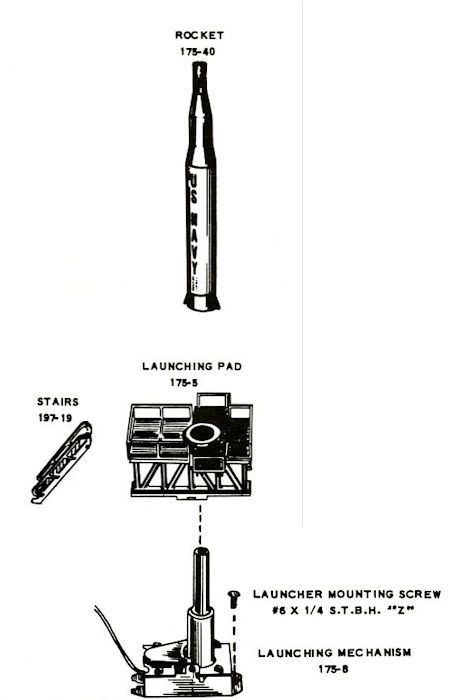

  Exploded Launcher Diagram



Launcher Armed

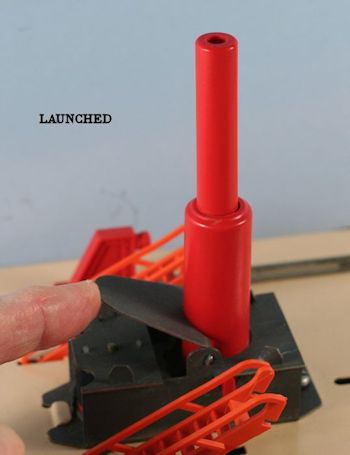

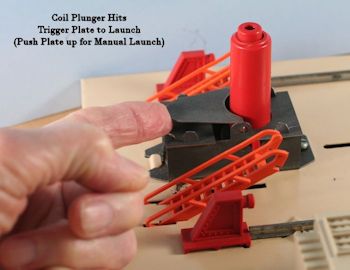

Prepare Manual Launch  After Manual Launch

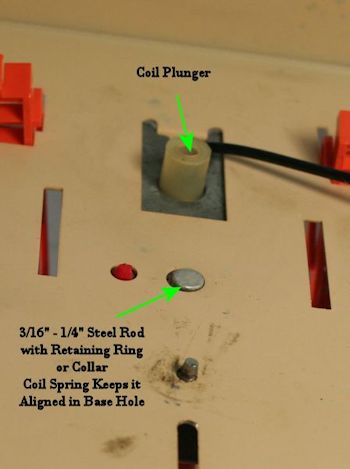

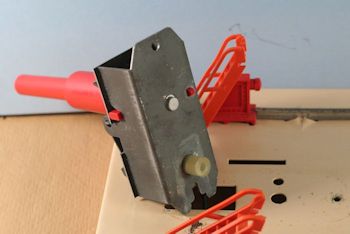

Platform Bottom  Launcher Bottom



The Steel Rod identified on the left may be a steel
flanged cup with a 3/16" steel rod inserted into
the cup.  The hole in the platform base keeps the
rod in its correct position.

Launcher Attachment Screw


The Launcher Mechanism mounting screw
with my launcher has 2 lock washers.
Launcher w Platform Rocket
