Toy Train Layout Wiring - Intermediate



Basic Intermediate Advanced Wire Management Bus Wiring 120V Train Room
Glossary Wire Sizes Switches Load Calculations Soldering Troubleshooting



      Scenery as a Necessary Evil

Foam sections can be used to embed wiring and set up scenes off the layout.

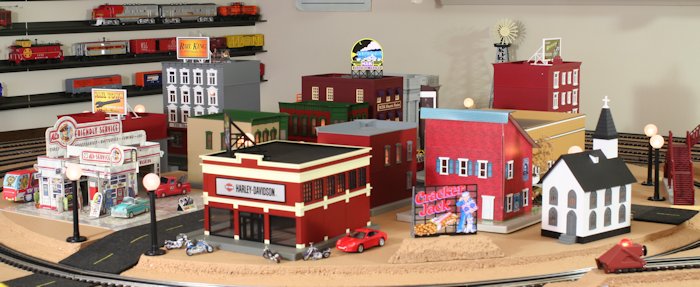

Downtown Wired

Downtown Finished

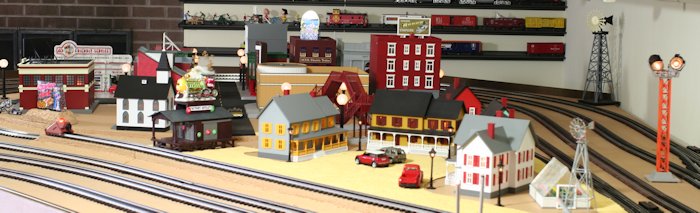

Suburb and Trolley Line

Suburb and Trolley Line

Wiring Tools

Tools for Extending Wires for Lamp Posts
Clockwise starting at lower left:  Scissors, heat shrink tubing, electrical solder, Lionel plastic street lamp, 24 gauge pair wire, third hand, wet sponge, soldering iron, long nose pliers, and wire strippers.

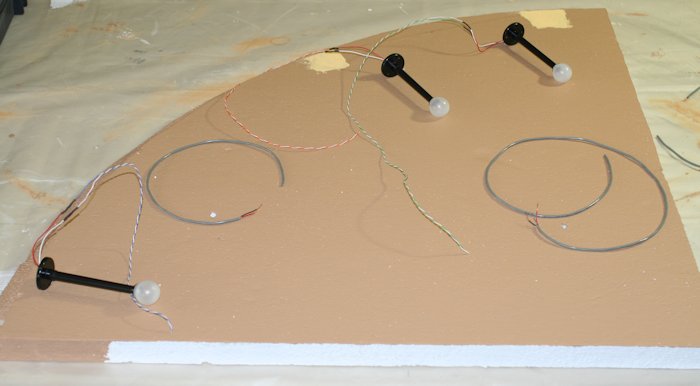

Install Surface Wiring

Surface Wiring on Quarter Circle

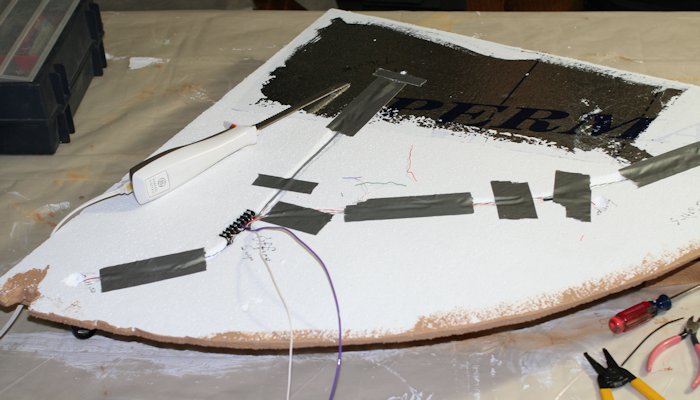

Quarter Circle Flipped

Wire for Street Lamps, Buildings, and Signs Recessed on all Quarters

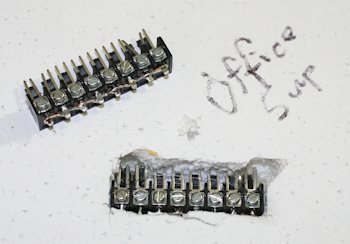

Surplus Terminal Strips - The top one is an example.  The embedded one is secured with clear silicone.

Duct tape over carved channels holds the wiring in place.
Terminal Strips

Attach Wire w Clips

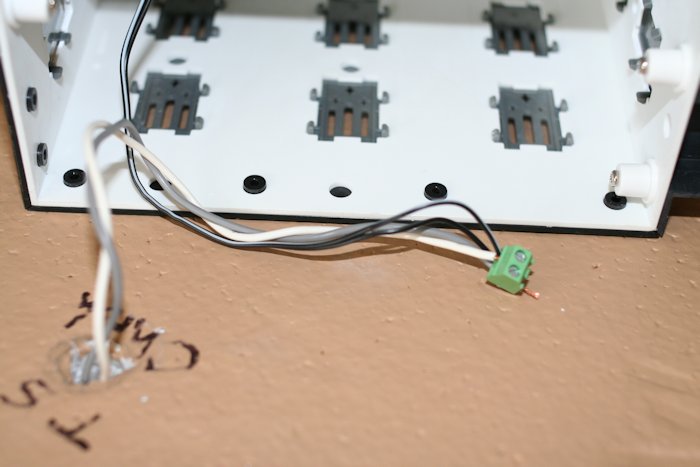

Attach Wire to Wire

Building Connections

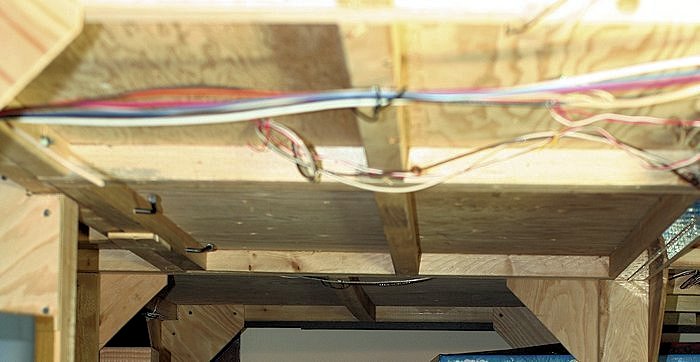

Under Table Wiring

Wires Routed Around Access Door

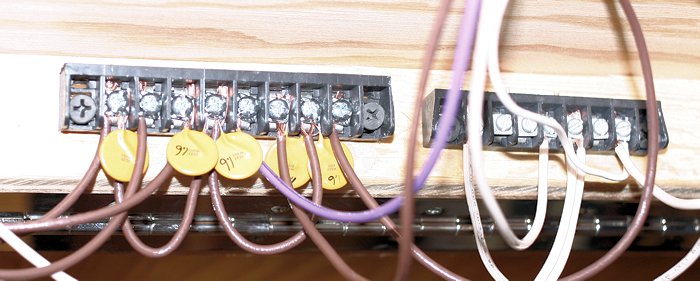

Section Buss to Transformer

Section Bus Wiring to Transformer
Yellow discs are 1.6 amp PTCs for circuit protection on each module.
