6-24154 Lionel Maiden Rescue
The installation is with Gargraves track. The

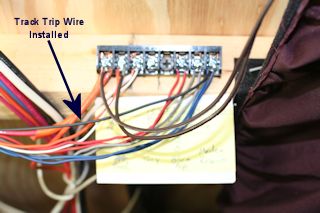

train starts the action with a Lionel 153IR Controller or a custom
made "track trip".

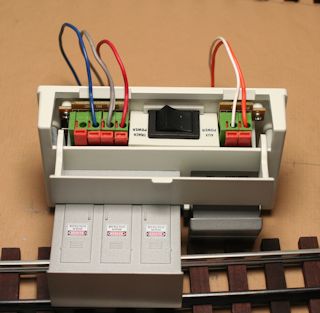

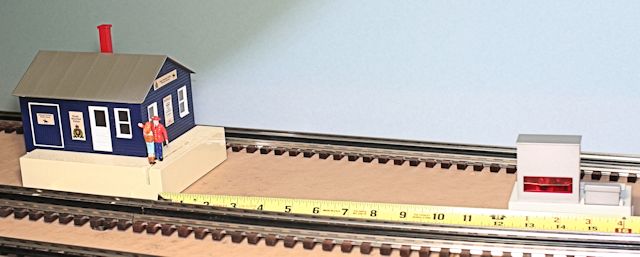

This Spacing works for High Speed Trains. Position IR Controller as close to Track as possible. Gargraves track is shimmed to allow building prongs to fit under track.

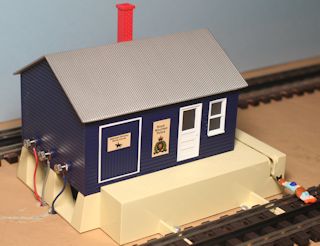

Wire Color Coding eases Identification and Troubleshooting. Use Maiden Rescue instructions for wiring from IR Controller. The instructions with the IR Controller for Maiden Rescue are incorrect.
 |
 |
The A/Orange tap is 14 VAC.
 |
 |

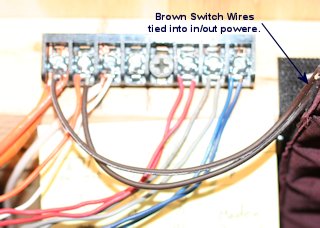

| An On/Off switch was added (brown wires) to prevent buzzing when accessory isn't being reset every time a train passes (the maiden and officer must be manually reset by pushing the officer's feet back). |
 |

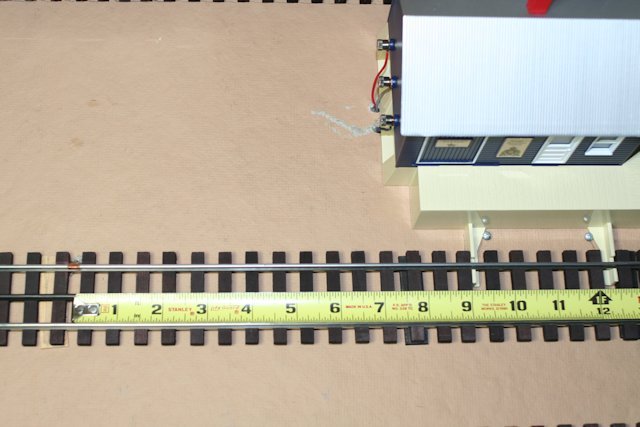

| Track Trip Distance to Building | |
 |
 |
