Battery Substitute Assembly
Assembly by COO (Chief Operating Officer) of SSPRR
3 Volt
This assembly replaces the MTH rechargeable batteries. Reuse the socket and wires from the MTH batteries. |

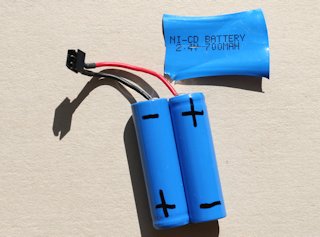

 MTH Rechargeable Batteries |

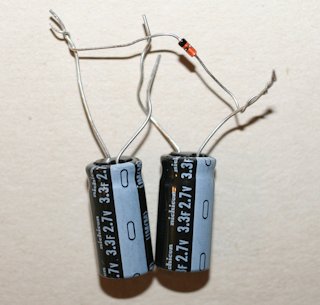

 Illustration of connections for capacitors in series and diode across the output leads. |

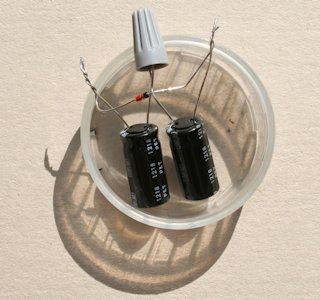

 Illustration with better polarity of connections for capacitors in series and diode across the output. |

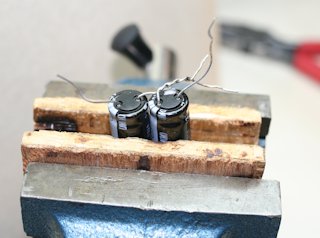

 Solder series connection. |

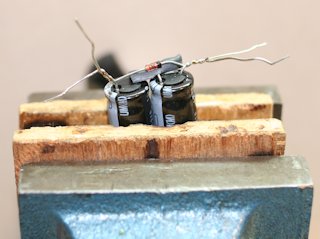

 Solder diode across outputs. |
|
See Parts List and
Instructions The Supercap illustrated below is the same or similar to the Supercap used in the original BCR2 by J and W Electronics. I now use the capacitor shown below in place of the 2 capacitors and diode listed above. |

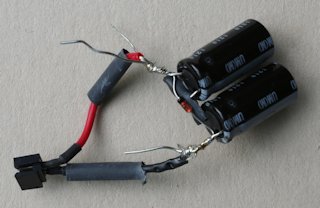

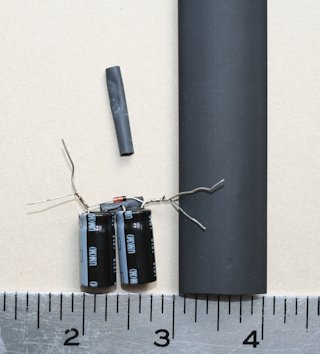

 Soldering is complete and ready for wire trimming and heat shrink tubing. |

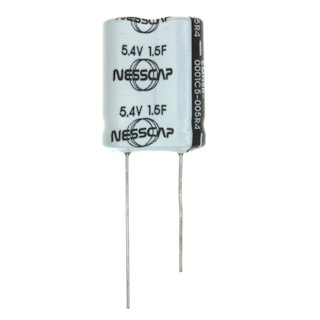

 Nesscap 5.0V 1.5F is a duplicate of the capacitor used in the BCR2. |
 |
